If you own a BMW E46 or are planning to buy one, understanding the engine wiring harness diagram is essential for troubleshooting and maintaining your vehicle. The engine wiring harness is a complex network of wires that play a crucial role in the performance and functionality of your BMW E46.
The Importance of the Engine Wiring Harness
The engine wiring harness serves as the nervous system of your BMW, as it enables communication between various components, such as the engine, sensors, and the central computer. It ensures that electrical signals are properly transmitted to perform functions like starting the engine, regulating fuel injection, and monitoring various sensors.
Without a properly functioning wiring harness, your BMW may experience various electrical problems, such as misfires, stalling, or even failure to start. Understanding the engine wiring harness diagram can help you identify and fix any issues that may arise in your vehicle.

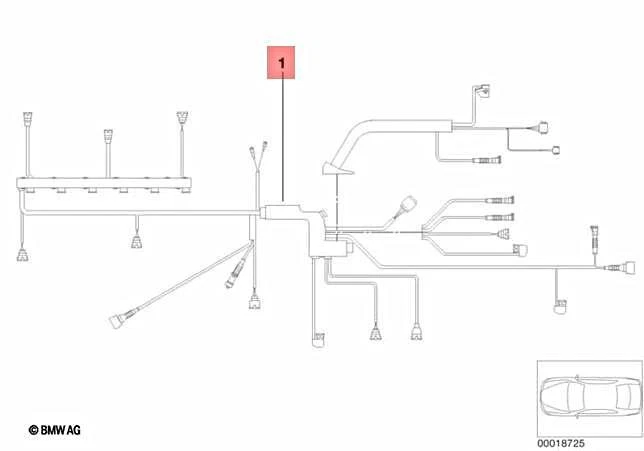

Credit: www.ebay.com
Credit: www.amazon.com
Components of the Engine Wiring Harness
The engine wiring harness in a BMW E46 consists of various components, each serving a specific function. Here are some key components you’ll find in the engine wiring harness:
- Engine Control Module (ECM): The ECM is the central computer that controls the engine’s operation. It receives input from various sensors and relays commands to different components.
- Ignition Coils: The ignition coils generate the high voltage needed to ignite the air/fuel mixture in each cylinder.
- Injectors: The injectors deliver fuel to the engine in a precise manner, based on the signals from the ECM.
- Sensors: Various sensors, such as the oxygen sensor, throttle position sensor, and crankshaft position sensor, provide data to the ECM for accurate engine operation.
- Fuel Pump: The fuel pump supplies fuel from the gas tank to the engine.
- Wiring and Connectors: The wiring and connectors in the harness connect all the components and ensure proper electrical flow.
Reading the Engine Wiring Harness Diagram
The engine wiring harness diagram is a visual representation of the electrical connections and routing within the harness. It provides a clear understanding of how the various components are interconnected and the path of electrical signals.
When reading a BMW E46 engine wiring harness diagram, it’s important to familiarize yourself with the symbols used to represent different components, wires, and connections. These symbols may vary slightly depending on the specific diagram, but they generally follow industry standards.
Each wire or connector is assigned a unique label or number, which helps in tracing and identifying them. The diagram will also indicate the color-coding of wires, facilitating easier diagnosis and troubleshooting.
Using the Engine Wiring Harness Diagram
The engine wiring harness diagram is a valuable resource when it comes to troubleshooting electrical issues in your BMW E46. By referring to the diagram, you can identify the specific wires and connectors related to a particular component or circuit.
If you’re experiencing a malfunctioning sensor, for example, you can use the wiring harness diagram to trace the sensor’s electrical connection back to the ECM. This can help you identify any loose connections, damaged wires, or faulty components causing the issue.
When performing any repairs or modifications on the engine wiring harness, it’s important to follow the diagram to ensure proper reconnection and avoid any adverse effects on the vehicle’s electrical system.
Frequently Asked Questions Of Bmw E46 Engine Wiring Harness Diagram: Ultimate Guide For Easy Troubleshooting
What Is An Engine Wiring Harness?
An engine wiring harness is a set of wires, connectors, and terminals that connects various components and sensors in the engine to ensure proper electrical communication.
Why Is The Engine Wiring Harness Important?
The engine wiring harness plays a crucial role in transmitting electrical signals and power to various engine components, ensuring their proper functioning.
How Does The Engine Wiring Harness Work?
The engine wiring harness acts as the nervous system of the engine, allowing electrical signals to flow between different engine components for smooth operation.
What Are The Common Signs Of A Faulty Engine Wiring Harness?
Common signs of a faulty engine wiring harness include engine misfiring, starting issues, electrical malfunctions, and warning lights on the dashboard.
Conclusion
Understanding the engine wiring harness diagram for your BMW E46 is vital for diagnosing and resolving electrical issues that may arise. By familiarizing yourself with the diagram, you can easily trace and identify wires, connectors, and components, thereby ensuring the proper functioning of your vehicle.
Regular inspections, maintenance, and adherence to the wiring harness diagram can help you keep your BMW E46 running smoothly and efficiently for years to come.
